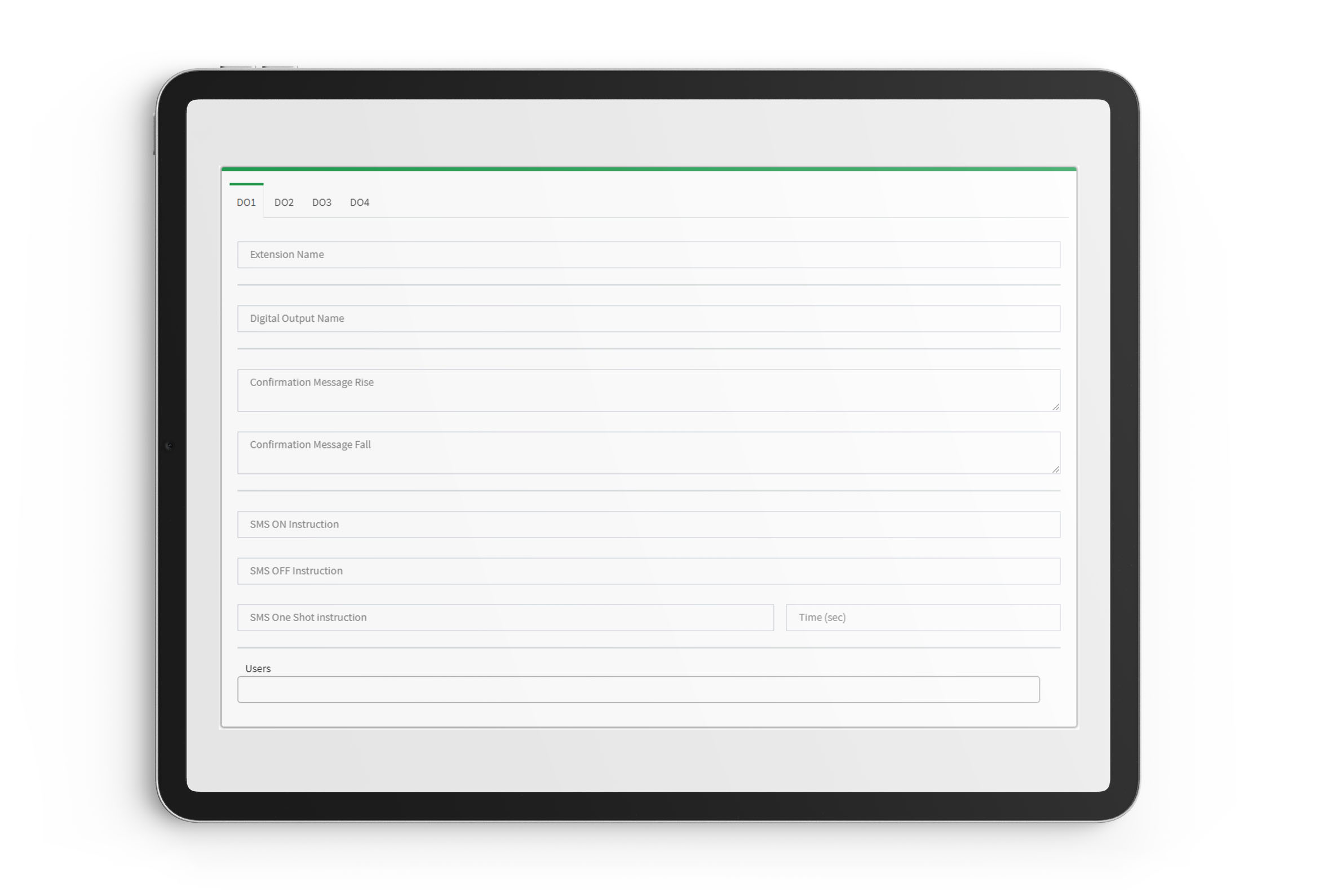

The digital output extension has 4 outputs. The extension can be given a logical name for easy recognition and will be shown in all applications. The same counts for the individual inputs. Extensions can be controlled per SMS command. The operate command can be chosen by the user. A SMS can be sent to the user as feedback that the GSM-PRO2 module has received the command and executed. Via the CONTA-SUPERVISION IoT portal the GSM-PRO2 can be controlled real time.
In the CONTA-SUPERVISION IoT portal and App a notification will be shown and placed into the event list. The output can be switched on/off or as a pulse output. The duration of the pulse is free configurable. The load of each output is maximum 16A / 250V UC and per extension is the maximum load 35A/250V UC.
